Sync SketchUp and Layout and Improve Accuracy

Unlock the full potential of SketchUp’s LayOut tool and supercharge your documentation workflow.

LayOut bridges the gap between design and communication—perfect for architects, interior designers, builders, and anyone who needs to present spatial ideas in a clear, structured format.

What is LayOut?

Whether you're creating detailed construction drawings, annotated floor plans, or professional presentation packages, LayOut makes it easy to place your SketchUp models onto pages, add dimensions, notes, and graphics, and export everything as PDFs or print-ready documents. Reduce Repetitive Tasks and Improve Accuracy

With new and improved features like Auto-Text, dynamic labeling, and updated shortcuts, users can produce clear, data-rich documents that stay in sync with the design.

In Architectural Drawings, you can:

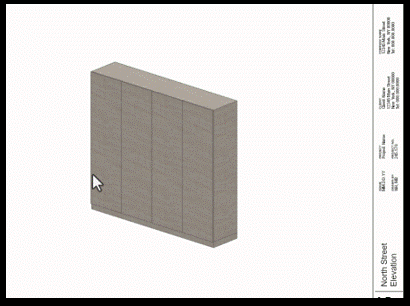

● “Send to LayOut” from SketchUp or “Insert” in LayOut

● Change Viewport size

● Change or update Style

● Choose View

● Set Scale

Add 2D Elements

● Add Hatches

● Add Dimensions

● Add Notes and Annotations

Dynamic "Live" Updates

A. Auto-Text  With LayOut’s Auto-Text labeling, users can automatically pull in and display data directly from SketchUp components—saving time and reducing errors.

This feature helps streamline documentation across different teams and ensures every member on the project access to the most updated informatiom whenever changes happen.

B. Labeling

Say goodbye to manual text updates and inconsistencies. Easily reference component details like Name, Price, Size, URL, Status, Owner, Type, and more. These attributes are dynamically linked, so when your model updates, your labels do too.

No more chasing down mismatched details across multiple drawings. With smart labeling, your documentation stays consistent, accurate, and presentation ready.

Smart Modeling Tips for Better Performance

• Purge Unused Items: Clear out unused components, materials, layers, and styles to reduce file size.

• Simplify Geometry: Reduce the number of segments in arcs and circles to lower polygon counts without sacrificing visual quality.

• Choose Lightweight 3D Warehouse Models: Opt for simplified components that won’t weigh down your file.

• Use 2D for Entourage Elements: Trees, furniture, people, and vehicles can often be represented effectively with 2D symbols rather than detailed 3D geometry.

• Save Complex Elements Separately: Store high-detail components in external .skp files and import them only when needed to keep the main model nimble.

Organize with Tags and Scene Management

Before sending your model to LayOut, structure it clearly with tags and scenes for smoother navigation and viewport control.

Model Organisation

Organize elements by building systems or categories.

Here’s one example of effective tagging:

• EXTERIOR – Wall, Window, Door, Roof

• INTERIOR – Ceiling, Wall Finish, Floor Finish

• MEP – Mechanical, Electrical, Pipe, Fixtures, Furniture

• STRUCTURE – Footing, Column, Beam

• GUIDE – Grid, Level, Axis, Room

Tip: Develop your own system that reflects your workflow.

Model Organisation Tip: Tag elements clearly

By tagging elements clearly, you can set up scenes in SketchUp that isolate specific parts of your model—making LayOut faster and more focused.

Use Nested Models for Better Control

For complex projects, nesting your model into logical parts provides greater flexibility and improves performance in LayOut.

Example Nesting Strategy:

• Room Components → grouped into

• Floor Model → grouped into

• Interior Model / Exterior Model / Structure Model → linked into

• Master Model File

This structure allows you to:

• Toggle visibility easily

• Load only relevant content into LayOut

• Keep pages lightweight and fast to update

With nested models and clean tagging, LayOut loads only what’s needed—helping you work faster without compromising on detail or clarity.

2025 Highlights: What’s New in LayOut

• Intuitive Tools: Rotate, Copy, and Scale now behave just like in SketchUp—making it more intuitive and seamless to switch between the two.

• "Join Selected": Combine multiple lines in one click—great for cleaning up imported drawings or simplifying geometry.

• Zoom Window Tool (Z): 🔍 Zoom directly into a selected area for quicker navigation and precise editing.

• Support for Environments & PBR Materials: Visual fidelity from SketchUp is now better represented in LayOut documents.

• Flexible Print/Export Options: Print directly from the Page Inspector. You can choose to output individual pages or specific ranges, instead of the entire document.
